HERTZ H8 DSP 8ch 32bit DSP

Кратко описание:

HERTZ H8 DSP е високотехнологичен иновативен аудиопроцесор с възможност за управление на 8 независими RCA изходни канала.

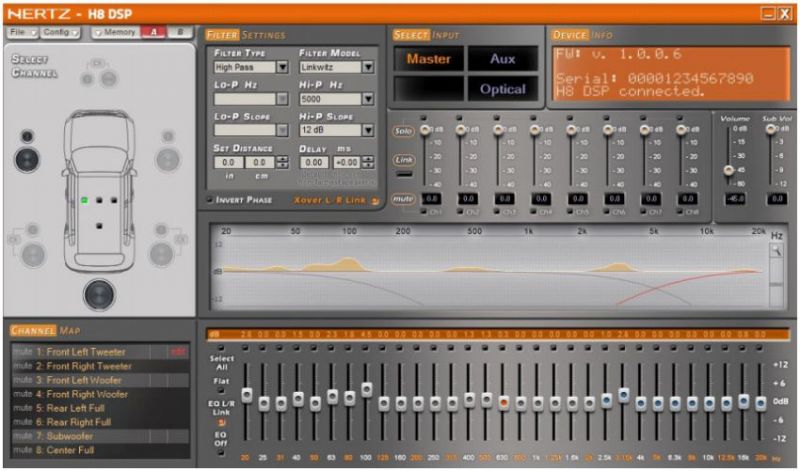

Съпътстващ софтуер за лесна настройка и корекции.
Дистанционно управление на основните функции чрез контролен панел
31-бандов параметричен еквилайзър, 66 стъпков кросовер и настройка от 6-12-24dB/oct, също така и time delay функция.

Носител на престижната награда EISA 2017

Цена: 699 лв.

OUTPUT STAGE
Low Level Pre (default) FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER
SIGNAL STAGE
Distortion - THD @ 1 kHz, 1V RMS Output 0,005%
Bandwith @ -3 dB 10 ÷ 22k Hz
S/N Ratio @ A weighted
 Digital input 105 dBA
 Master Input 95 dBA
 AUX Input 96 dBA
Channel Separation @ 1 kHz 85 dB
Input sensitivity (Speaker In) 2 ÷ 15 V RMS
Input sensitivity (AUX In) 0,6 ÷ 5 V RMS
Input impedance (Speaker In) 2,2 kΩ
Input impedance (AUX) 15 kΩ
Max Output Level (RMS) @ 0.1% THD 4 V RMS
CONNECTIONS
From / To Personal Computer 1 x USB / B

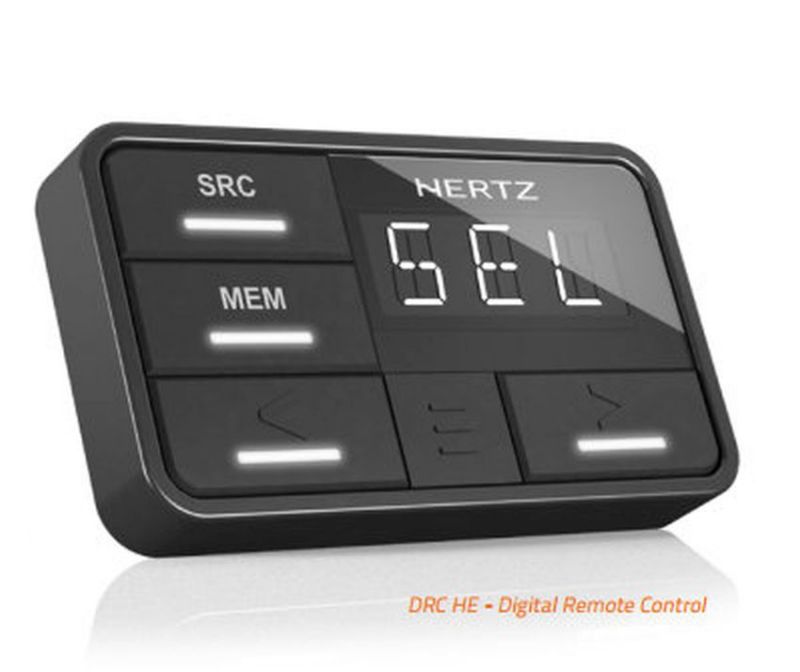

DRC HE Audio controls and Memory / Inputs selection
Optical / AUX select Optical In / Aux wire control 12V / GND enable
Memory A / Memory B Memory A / B wire control 12V / GND enable
CROSSOVER N.8 (one for each output channel)
Filter Type Full / High Pass / Low Pass / Band Pass
Filter mode and slope Linkwitz @ 12 / 24 dB
Butterworth @ 6 / 12 / 18 / 24 dB
Crossover frequency 68 steps @ 20 ÷ 20k Hz
Phase control 0° ÷ 180°
TIME ALIGNMENT
Distance 0 ÷ 510 cm / 0 ÷ 200.8 inch
Delay 0 ÷ 15 ms
Step 0.08 ms; 2,8 cm / 1.1 inch
Fine set 0.02 ms; 0,7 cm / 0.27 inch
GENERAL REQUIREMENTS
PC connections USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements:
Microsoft Windows (32/64 bit):
XP, Vista, Windows 7, Windows 8,
Windows 10
Grap
