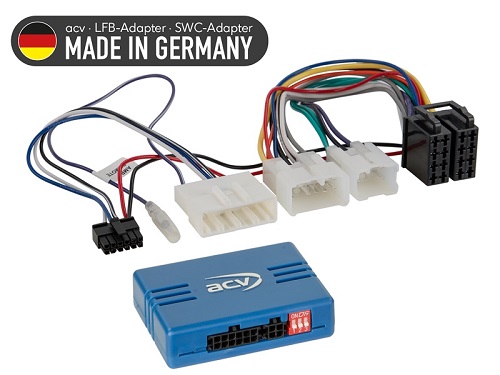

ACV 42a-1300-002-0 SWC Toyota 10Pin/6Pin/28Pin analog
Кратко описание:
analog
connector: 10Pin / 6Pin / 28Pin Toyota
vehicles with Matsushita / Fujitsu Ten OEM HU
vehicles without 360° OEM camera system
diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised
Vehicle application:
Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Hilux (AN1P) 10/2020 - 2025***
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018**
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020
SWC
*vehicles with rear view camera SWC Toyota different vehicles 28Pin USB/antenne/camera > item: 42xty015
**vehicles with 360° OEM camera system SWC Toyota vehicles 10Pin/6Pin/28Pin/24Pin Multilead > item 42xty019
***vehicles without JBL OEM HU
HU application:
Multilead different HU > item: 42arc100
General installation instructions:
Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.
Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle
Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6
More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.
More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle·s cable assignment diagram before connection.
4: Connections and modifications are made on the user·s own responsibility without guarantee of function.
5: Connections and modifications are made on the user·s own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product·s warranty.
Цена: 97.77 лв. / 49.99 €
.
Аксесоар към модул ACV 42CX401
connector: 4 Pin Molex > 3,5mm Jack / multi lead connector
SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip switches (ON/OFF)
Atoto retrofit HU not supported
Use case:
Alpine 3,5mm jack connector
Blaupunkt 2010> 3,5mm jack connector (Sony/Pioneer)
Blaupunkt 2010> Key1 / Key2 / (GND) connector (China HU)
China Hu Key1 / Key2 / (GND)
Clarion 3,5mm jack connector
Digital Dynamics single lead connector
ESX Key1 / Key2 connector (China HU)
JVC 3,5mm jack connector
JVC single lead connector (Kenwood)
Kenwood single lead connector
Kenwood 2017> 3,5mm jack connector (Pioneer/Sony)
Kenwood 2020> Key1 / Key2 / GND connector (China HU)
Pioneer 3,5mm jack connector
Snooper Key1 / Key2 connector (China HU)
Sony 3,5mm jack connector
XZent single lead connector
Zenec single lead connector
DIP switches 42cx401:
Alpine > OFF/OFF/OFF
Blaupunkt 2010> > OFF/ON/OFF (OFF/ON/ON)
China Hu > OFF/ON/OFF
Clarion > ON/ON/OFF
Digital Dynamics > OFF/OFF/ON
JVC > ON/OFF/ON (ON/ON/ON) (singlelead)
JVC > ON/OFF/ON (ON/ON/ON) (Jack connector)
Kenwood > ON/ON/ON (single lead)
Kenwood 2017> OFF/ON/OFF (OFF/ON/ON) (Jack connector)
Kenwood 2020> OFF/ON/OFF (OFF/ON/ON) (Key1/Key2/GND))
Pioneer > OFF/ON/ON
Snooper > OFF/ON/OFF
Sony > OFF/ON/ON
XZent > OFF/OFF/ON
Zenec > OFF/OFF/ON
Цена: 15 лв. / 7.67 €
