ACV 42CX10 кабелен преход за 42cx401/42cx402 universal
Кратко описание:
кабелен преход за: 42cx401/42cx402/can-uni 01
Цена: 24 лв. / 12.27 €
.
Аксесоар към модул ACV 42CX401

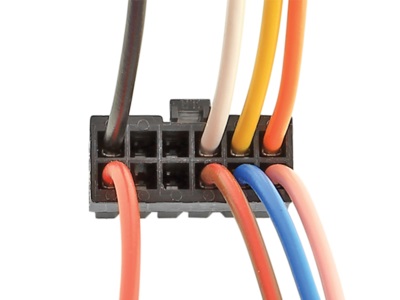

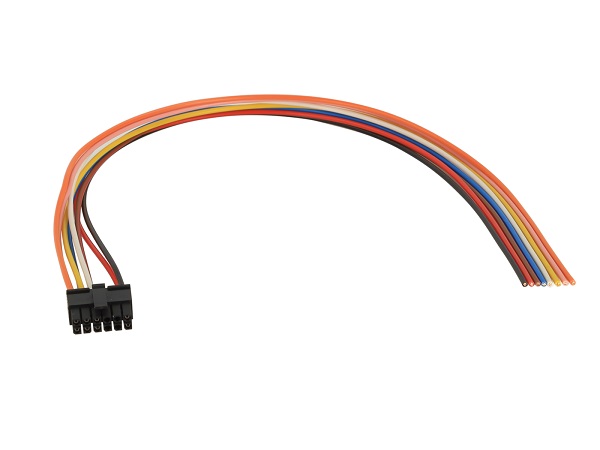

connector: 4 Pin Molex > 3,5mm Jack / multi lead connector
SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip switches (ON/OFF)
Atoto retrofit HU not supported
Use case:
Alpine 3,5mm jack connector
Blaupunkt 2010> 3,5mm jack connector (Sony/Pioneer)
Blaupunkt 2010> Key1 / Key2 / (GND) connector (China HU)
China Hu Key1 / Key2 / (GND)
Clarion 3,5mm jack connector
Digital Dynamics single lead connector
ESX Key1 / Key2 connector (China HU)
JVC 3,5mm jack connector
JVC single lead connector (Kenwood)
Kenwood single lead connector
Kenwood 2017> 3,5mm jack connector (Pioneer/Sony)
Kenwood 2020> Key1 / Key2 / GND connector (China HU)
Pioneer 3,5mm jack connector
Snooper Key1 / Key2 connector (China HU)
Sony 3,5mm jack connector
XZent single lead connector
Zenec single lead connector
DIP switches 42cx401:
Alpine > OFF/OFF/OFF
Blaupunkt 2010> > OFF/ON/OFF (OFF/ON/ON)
China Hu > OFF/ON/OFF
Clarion > ON/ON/OFF
Digital Dynamics > OFF/OFF/ON
JVC > ON/OFF/ON (ON/ON/ON) (singlelead)
JVC > ON/OFF/ON (ON/ON/ON) (Jack connector)
Kenwood > ON/ON/ON (single lead)
Kenwood 2017> OFF/ON/OFF (OFF/ON/ON) (Jack connector)
Kenwood 2020> OFF/ON/OFF (OFF/ON/ON) (Key1/Key2/GND))
Pioneer > OFF/ON/ON
Snooper > OFF/ON/OFF
Sony > OFF/ON/ON
XZent > OFF/OFF/ON
Zenec > OFF/OFF/ON
Цена: 15 лв. / 7.67 €
CAN Bus
connector: without connection cable
outputs:
+12V ignition clamp 15 1,5A max.
+12V illumination clamp 58 0,1A max.
+12V reverse gear signal 1,5A max.
speed pulse signal
different vehicles
check dip switches for retrofit HU
additional information > in the description of the vehicle specific harness
Цена: 249 лв. / 127.31 €
