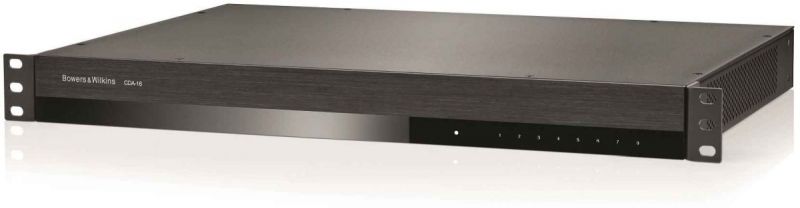

Bowers & Wilkins CDA-16 16ch x50W Multizone Amplifier

Bowers & Wilkins CDA-16 16ch x50W Multizone Amplifier

Кратко описание:

Специализиран 16 канален мултизонале аудио усилвател
16 независими входа и 16 моноканални усилватели проектиран за захранване на вградени в тавана или стената тонколони за фоново озвучаване.

Мощност: >50W /8Ω
               >100W / 4Ω
Мощност в бридж режим: >200W into 8Ω
Честотна лента: 20Hz-20kHz (±0.5dB)
THD+N (1kHz, 12.5W, 4Ω): 0.05%

Цена: 3899 лв. / 1993.53 €

Доставка и плащане Рекламации Защита на лични данни

Audio Specifications
Load impedance range: >3Ω per channel (>6Ω in bridge mode)
Output Power per channel, non-clipped: >50W into 8Ω
                                                                >100W into 4Ω
Output Power bridge mode, non-clipped: >200W into 8Ω
Output Power total, all channels: >400W short term
                                                >200W continuous average

Frequency Response (-3dB): <10Hz to >50kHz, any load impedance
Frequency response accuracy 20Hz-20kHz: ±0.5dB
Signal to Noise ratio (Ref. 50W/8Ω): >100dB A-Weighted
THD+N (1kHz, 12.5W, 4Ω): typically 0.05%

Voltage Gain: 34.9dB to - infinity, adjustable
Input impedance: 15KΩ
Maximum input voltage: 6.8V peak (4.8V rms sine wave)
Signal sense threshold: 2.5mV (independent of Gain setting)
Wake-up time: <0.2s (If other zones active)
                <2s (From all zones inactive)
Turn-off time: 15 minutes from last signal detected
12V trigger input threshold: typically 3V (recommended input is 5-15V)

Controls & Indicators

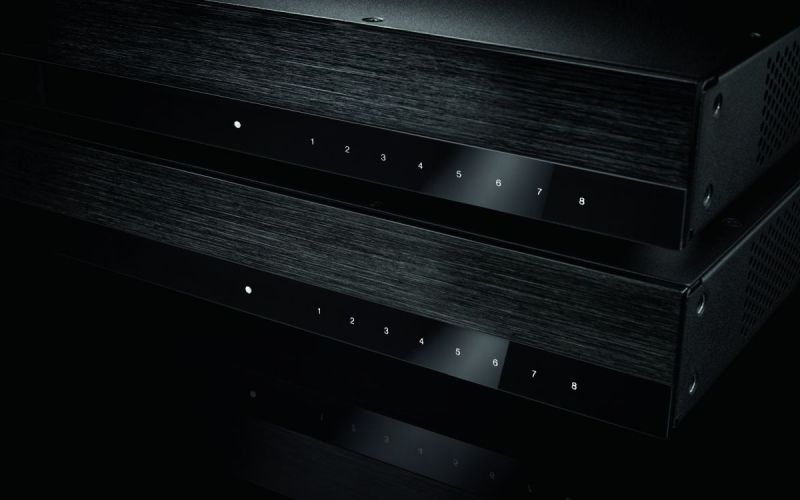

Front panel: 1 x Power LED (unit active – White, Fault – Red)
                        8 x Zone status LEDs (Signal present – White, Fault – Red)

Signal sense threshold: 2.5mV (independent of Gain setting)

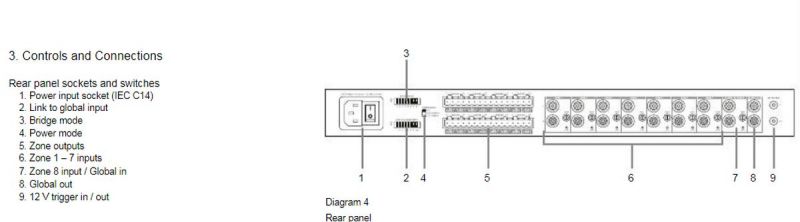

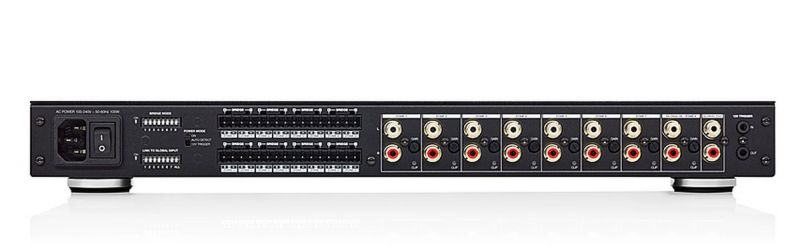

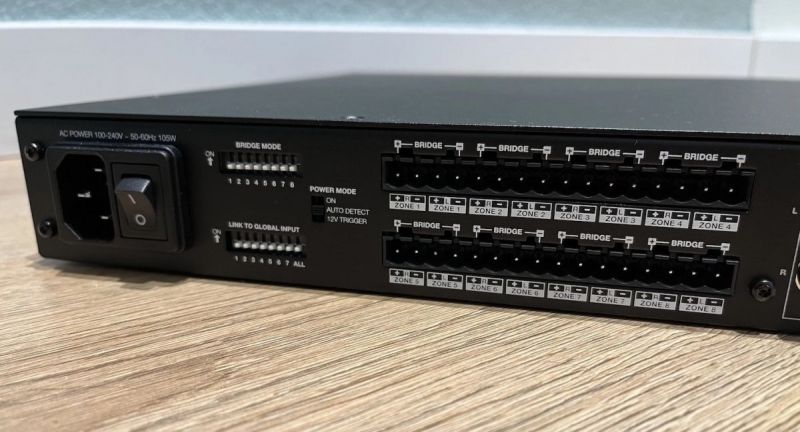

Rear panel: 8 x 2-position DIP switches (link to global input)
                        1 x 3-position switch (power mode: on, auto detect, 12V trigger)
                        8 x input gain control with Clip indicator LEDs

Connectors

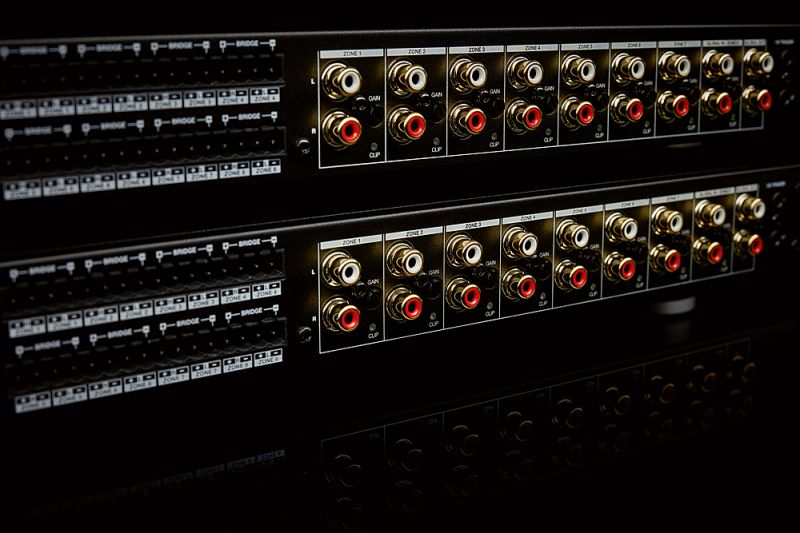

Input: 8 x RCA (pair) line in (global in shared with Zone 8)
Output: 1 x RCA (pair)
                8 x 5.08mm Pitch 4-way Phoenix Combicon style
12V trigger control: 1 x 3.5 mm jack - 12V trigger IN
                        1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)
Turn-off time: 15 minutes from last signal detected
12V trigger input threshold: typically 3V (recommended input is 5-15V)

Power consumption: <0.5W All zones inactive
                        <45W All zones idling
                         300W maximum average
                         1,000W peak
Размер: Ш/В/Д  437*44,5*310mm
