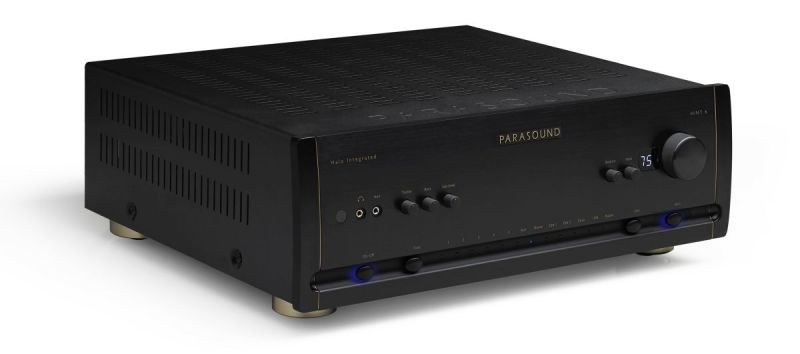

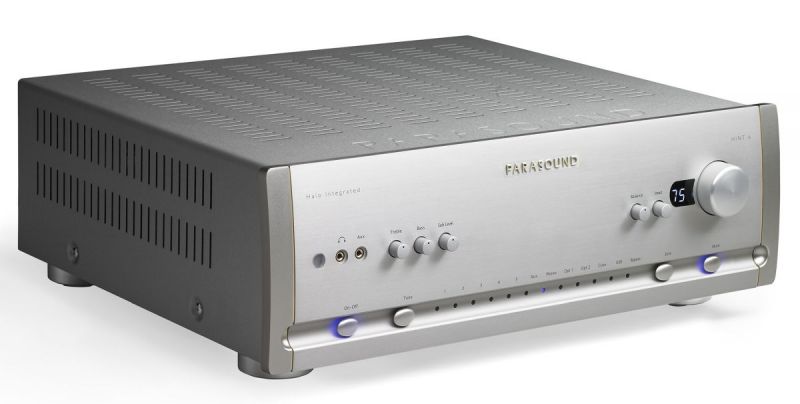

Parasound HINT 6 Stereo High-End Amplifier

Кратко описание:

Висок клас СТЕРЕО интегриран усилвател с забележителни аудиофилски показатели. Модел 2018г

Вградени балансирани XLR входове за Hi-End източници

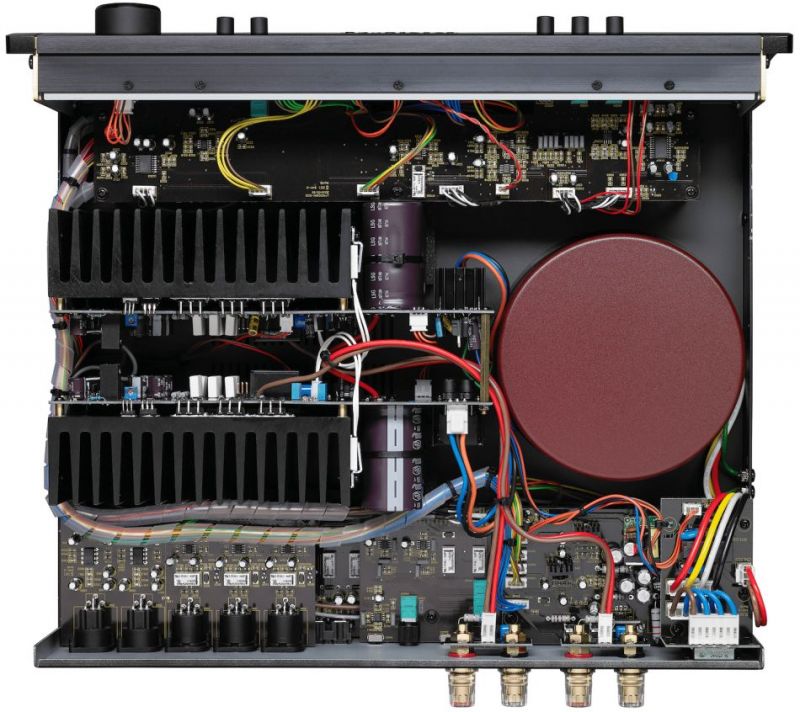

Мощем тороидален 750W траф и високо капацитивна 40 000 uF филтрова група съчетано с двойно МОНО топология
Burr-Broun енкодер на управлението на усилване (без потенциометър - аналогово)
Референтен клас цифрово- аналогов конвертер ESS Sabre32 Reference DAC (ES9018K2M) 384 kHz / 32-bit
Мощност: 160 Watts x 2 @ 8 Ohms (RMS, both channels driven)
               240 Watts x 2 @ 4 Ohms (RMS, both channels driven)

Цена: 5099 лв.

Цена с online поръчка: 4999 лв.

Preamp and DAC Features
ESS Sabre32 Reference DAC (ES9018K2M)
Asynchronous USB 2.0 supports PCM up to 384kHz/32-bit
USB input decodes Native DSD64, DSD128, DSD256 and DoP DSD
Coax and optical inputs accept PCM up to 192kHz/24-bit
Analog bass management with high & low pass crossovers
Home theater bypass input for surround sound integration
Front panel subwoofer level control
Dedicated high current headphone amplifier (TI TPA6120)
Phono input for MM, MC and MI with 100 Ω or 47k Ω load
Front panel Aux input with automatic +12 dB gain stage

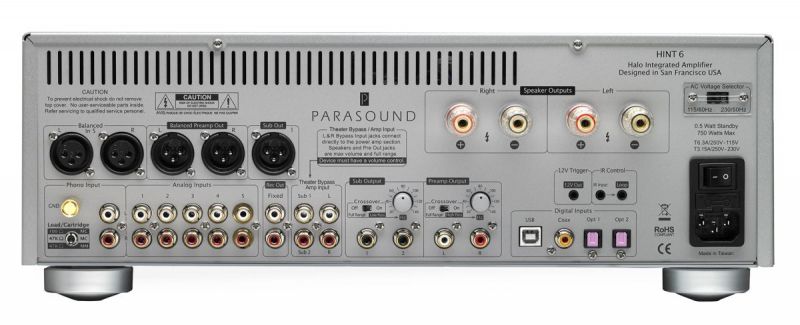

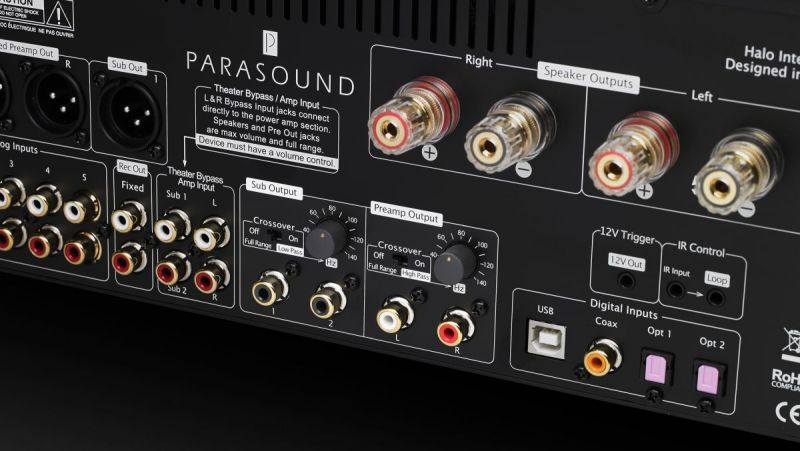

Terminals
5 pairs RCA line level Analog inputs
1 pair XLR balanced Analog input
Balanced XLR and RCA left and right preamp outputs
1 balanced XLR and 2 RCA subwoofer outputs
Bass & treble controls with relay bypass from remote or front panel
Rear panel IR input and IR loop output jacks
12 Volt trigger output

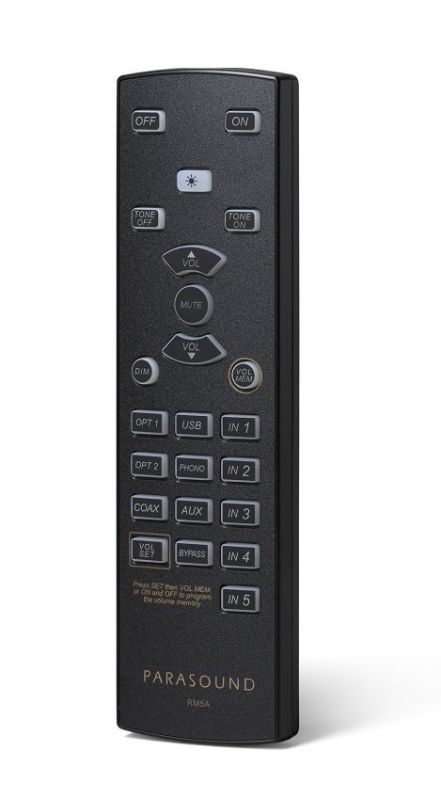

Back-lit remote control with discrete buttons
0.5w standby power consumption meets Energy Star & EU specs

Power Amp Features
Output Power (0.05% THD, 20 Hz - 20 kHz)
                      - 160 Watts x 2 @ 8 Ohms (RMS, both channels driven)
                      - 240 Watts x 2 @ 4 Ohms (RMS, both channels driven)
Power amp circuit topology designed by legendary John Curl
Direct amplifier input to bypass preamp section
High bias class A/AB operation

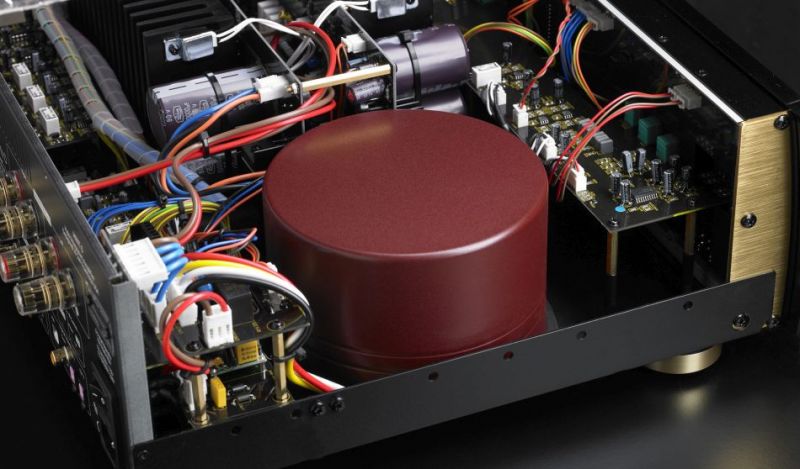

Oversized shielded toroid power transformer
Dual-mono power supply and power amplifier
40,000uF power supply filter capacitance
Matched JFET input stages and MOSFET driver stages
12 high voltage/high current bipolar output transistors
Heavy-duty 24k gold-plated 5-way speaker binding posts
Over temp and short circuit relay protection

Specification
Current Capacity 45 amps peak per channel
Frequency Response  10 Hz - 100 kHz, +0/-3 dB
                                     20 Hz - 20 kHz, +0/-0.5 dB Total Harmonic Distortion (THD)  < 0.01 %, average listening levels
                          < 0.05 %, 160 watts x 2 @ 8 Ω
Interchannel Crosstalk  > 70 dB at 20 kHz
                                   > 78 dB at 1 kHz
Signal to Noise Ratio - IHF A-weighted
             Line in: - 103 dB (input shorted)
             Digital in: - 106 dB
Amplifier Damping Factor  > 800 at 20 Hz
Preamplifier Stage Input Sensitivity  300 mV in for 1 V at Preamp Output jacks
Total Preamp Stage Gain: 10 dB
Max Output Unbalanced: 7 V
Max Output Balanced: 9 V
Power Amplifier Stage Sensitivity  1 V at Bypass/Amp In for 28 V at Speaker Out
Total Amp Stage Gain: 28 dB
Phono Stage Sensitivity / Input Impedance
                  MM: 41 dB / 47 k Ω
                  MC: 54 dB / 47 k Ω or 100 Ω
High & Low Pass Crossover Slope  12 dB per octave
Supported DAC Sampling Rates
                          USB: up to 384 kHz / 32-bit PCM
                          DSD Native: DSD 64, DSD 128, DSD 256
                          DSD over PCM (DoP) at 384 kHz
Coax/Optical: up to 192 kHz / 24-bit PCM
Digital to Analog Converter  ESS Sabre32 Reference ES9018K2M
384 kHz / 32-bit
USB 2.0 Controller  - Savitech SA9227, 384 kHz / 32-bit
Headphone Amplifier  - Texas Instruments TPA6120A
Output Impedance 10 ohms

Input Impedance - Unbalanced: 24 k Ω
                            Balanced: 100 k Ω per leg
Preamplifer Output Impedance Unbalanced: 100 Ω
                                             Balanced: 470 Ω per leg

Dimensions Width: 437 mm
                 Depth: 413 mm / Depth, with cables 437 mm
                Height, with feet: 150 mm / Height, without feet: 133 mm, 3U
Net Weight  15 kg / Shipping Weight 20.4 kg
Power Requirement
Standby: 0.5 watts
Idling power: 70 watts
Maximum: 750 watts
220-250 VAC 50 Hz
