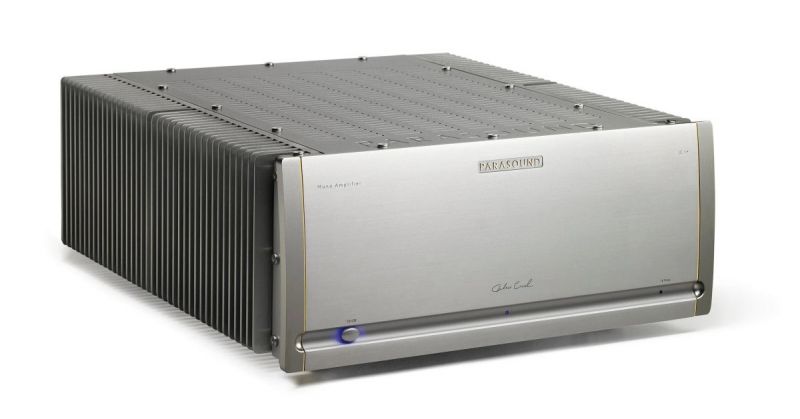

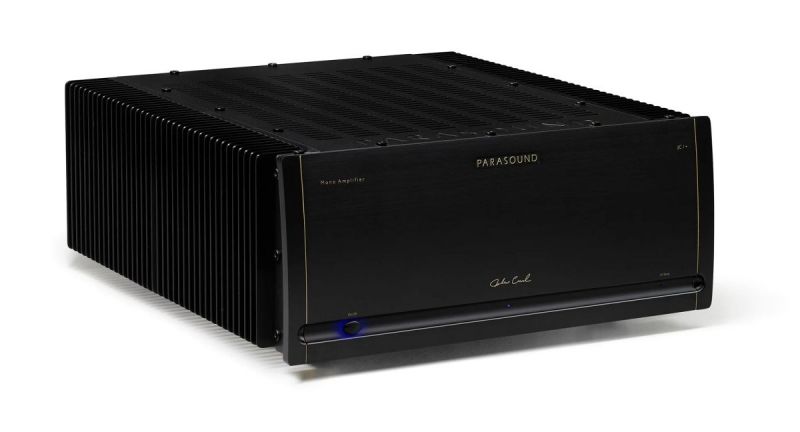

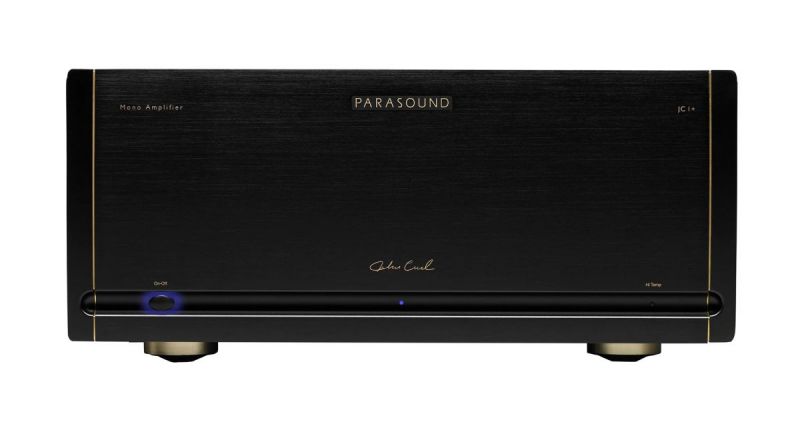

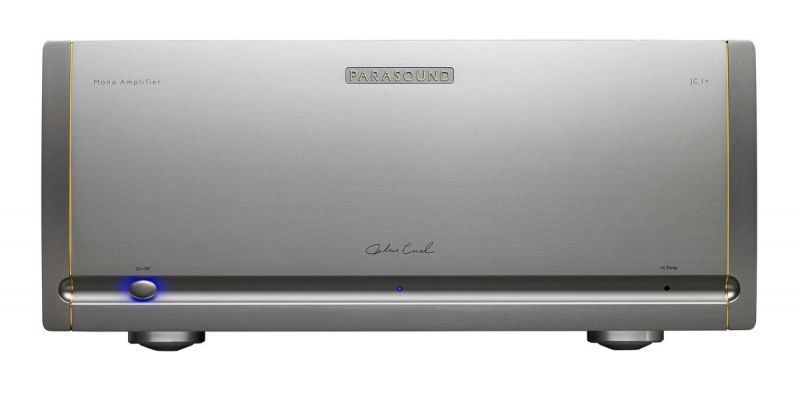

Parasound JC1+ 450W High End Monoblock

Parasound JC1+ 450W High End Monoblock

Кратко описание:

Чудовищен аудиофилски моноблок с тегло над 36кг и ефективна мощност 450W
Този шедьовър е разработен от реномирания дизайнерски екип на Parasound, ръководен от легендарния аудио дизайнер Джон Кърл

С номинална мощност от 450 вата RMS при 8 ома, 850 вата RMS при 4 ома и 1300 вата RMS при 2 ома, заедно с пиков ток от 180 ампера, JC1+ вдъхва живот на вашите високоговорители. Първите 25 вата се доставят в чист клас А, осигурявайки изключително изживяване при слушане.

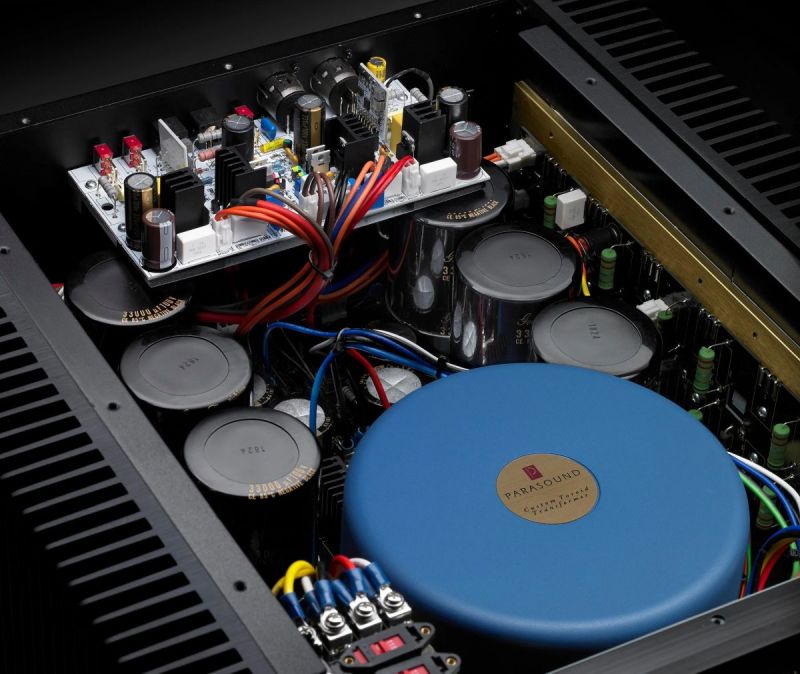

2,4kVA главен захранващ трансформатор
Parasound JC1+ само най-добрите материали използвани в суперкомпютри и космонавтика.
Премиум REL кондензатори, конектори 24k злато

Цена: 21999 лв. / 11247.91 €

Доставка и плащане Рекламации Защита на лични данни

  • 25 watts of pure Class A power
  • 450 Watts @ 8Ω
  • 850 Watts @ 4Ω
  • 1300 Watts @ 2Ω

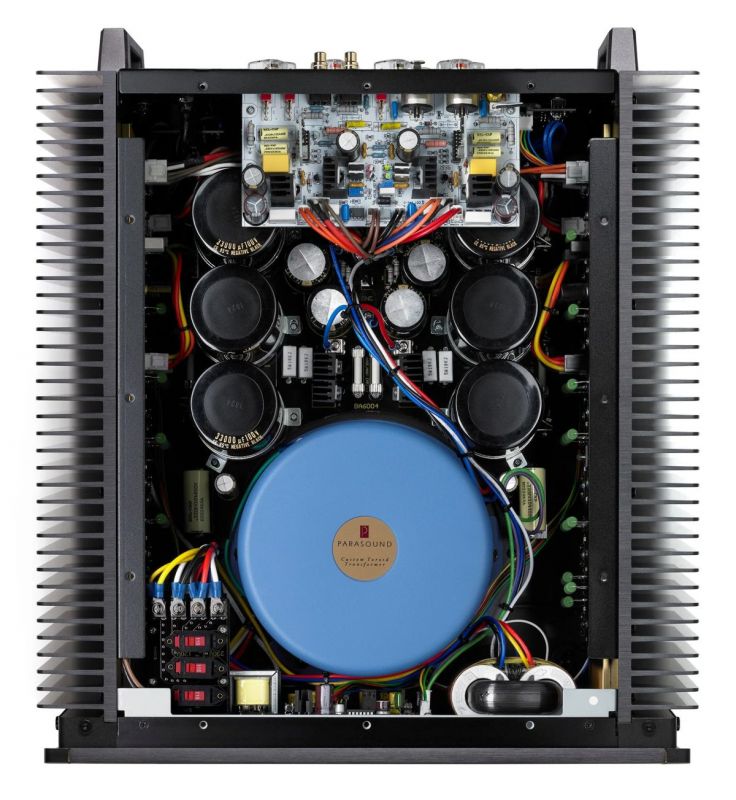

  • Filter capacitance: 198,000 uF- 6 massive 33,000 uF Nichicon Gold Tune filter capacitors
  • 22,400 uF input stage power supply filter capacitors, independent of the main power supply

  • Transformer capacity: 2.1kVA
  • Output transistors: 24 Sanken 60Mz devices
  • Peak current: 180 amps
  • Stable with speaker impedance dips below 1Ω
  • JFET input stage, MOSFET driver stage

  • FR-408 input circuit board material improves HF signal integrity
  • Gain switch to select 29 dB or 23 dB gain
  • R-core power transformer for input stage
  • Input circuit board is shielded
  • Double thickness copper on output/power supply circuit boards
  • Gold-plated internal audio signal path connectors

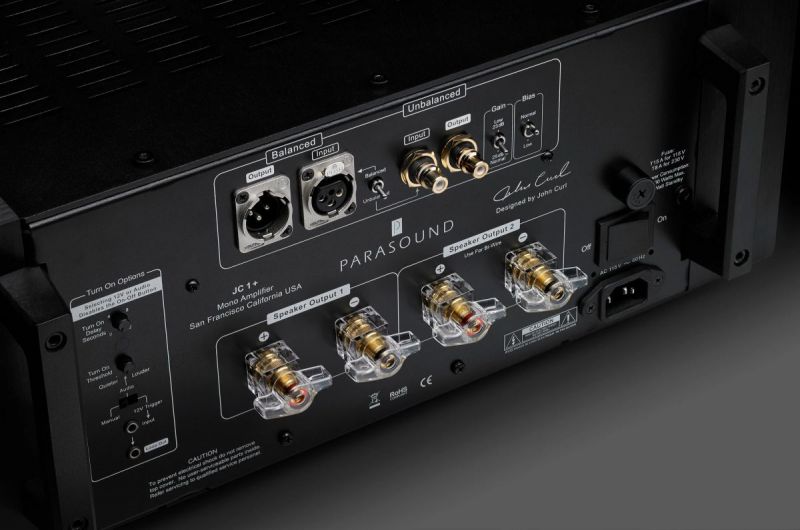

  • Custom CHK Infinium speaker binding posts

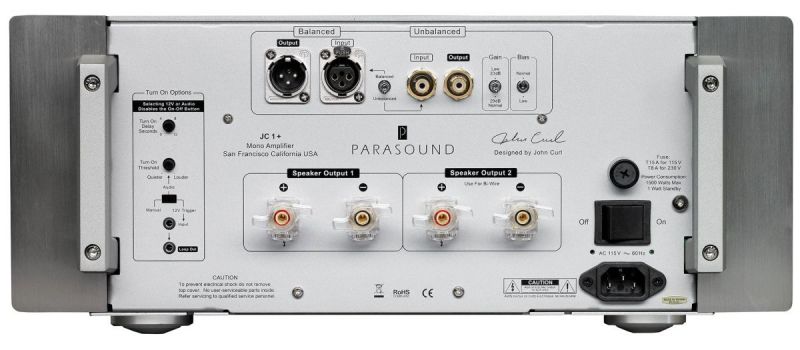

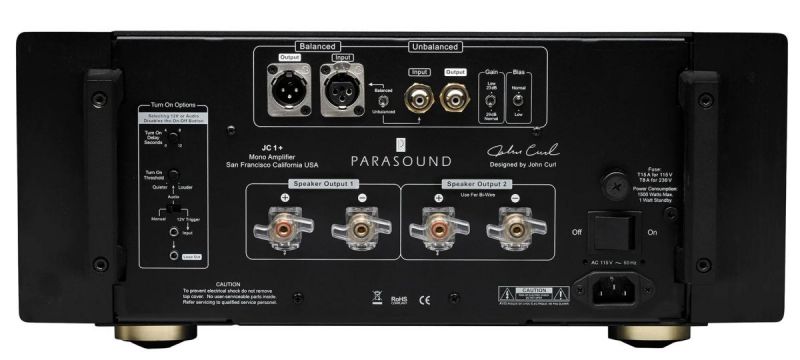

  • Looping Neutrik XLR output for easier bi-amping

Specifications

Power Output: 450 x1 watts @ 8Ω,
                        850 x1 watts @ 4 Ω,
                      1300 x1 watts @ 2 Ω

       @ 0.15% THD, RMS continuous power,full audio band (20Hz - 20kHz)

Class A Power Output: 25 Watts bias switch set to high, 10 Watts bias switch set to low
Current Capacity: 180 amps, peak
Slew Rate: > 130 volts per microsecond
Frequency Response: 2Hz-120 kHz +0/-2 dB, 20Hz-20kHz, +0/-0.25 dB
Total Harmonic Distortion (THD): < 0.15 % at full power, < 0.02 % at typical listening levels

IM Distortion: < 0.03 %
TIM: Unmeasurable
Damping Factor: > 1200 at 20 Hz
Input Impedance: Unbalanced: 50 kΩm Balanced: 100 kΩ, (50 kΩ per leg)
S/N Ratio, inputs shorted

  • >122 dB, IHF A-weighted, bias set to Low
    >120 dB, IHF A-weighted, bias set to High
    >113 dB, Unweighted, bias set to Low
  • >111 dB, Unweighted, bias set to High

Total Gain: 29 dB (Gain switch set to normal), 23 dB (Gain switch set to low)
Input Sensitivity for 28.28V Output into 8Ω (Gain switch set to normal)

  • Unbalanced: 1 V
  • Balanced: 1 V per leg

DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirement: 2.5 mV - 10 mV
XLR Pin Identification: 1 = Ground (Shield), 2 = Positive, 3 = Negative (Return)

Dimensions

  • Width: 448 mm
  • Height without feet: 181 mm
  • Height with feet: 197 mm
  • Depth: 508 mm
  • Depth with cables: 546 mm

Net Weight: 37.6 kg

Shipping Weight:  45.4 kg

Power Requirements

  • Standby: <1 Watt
  • Idle (bias set to low): 145 Watts
  • Idle (bias set to high): 275 Watts
  • Typical Listening levels: 400 Watts
  • Maximum: 1500 Watts
