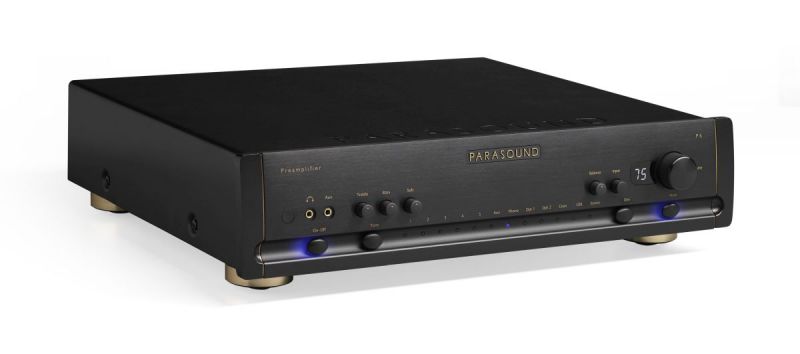

Parasound HALO P6 High End 2-ch Preamplifier with DAC предусилвател

Parasound HALO P6 Preamplifier + DAC

Кратко описание:

2 канален STEREO висок клас High End предусилвател с балансирани входове/изходи и вграден  ESS Sabre32 Reference DAC (ES9018K2M) с USB, Optical и Coax входове 192 kHz/24-bit
Модел 2022г замества HALO P5
Регулатор на усилването изпълнен с висок клас Burr-Broun резистори

Честотна лента:  10 Hz - 100 kHz, 0/-3 dB
Изкривявания: < 0.01 %
MM/MC Phono вход с 100ohm или 47kohm

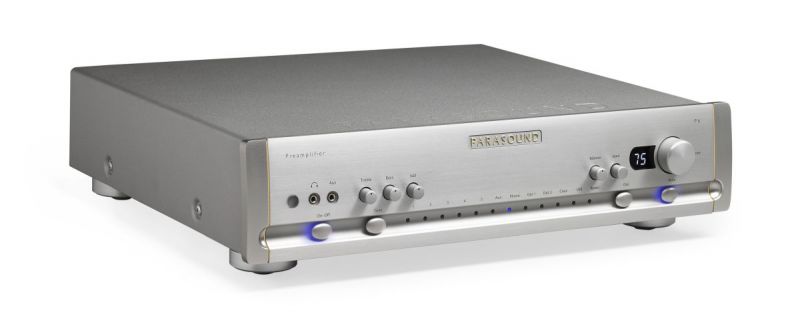

Предлага се в черен и сребрист цвят по предварителна заявка

Цена: 4999 лв. / 2555.95 €

Доставка и плащане Рекламации Защита на лични данни

  • ESS Sabre32 Reference DAC (ES9018K2M)
  • Asynchronous USB supports PCM up to 384kHz/32-bit
  • USB input decodes Native DSD256 and DoP DSD and is Plug and Play with Win 10
  • Coax & 2 optical inputs accept PCM up to 192kHz/24-bit
  • Analog bass management with high/low pass crossovers
  • Bypass input for surround sound integration
  • Front panel subwoofer level control
  • Dedicated high current headphone amplifier
  • Phono input for MM or MC with 100 Ω or 47k Ω load
  • Front panel Aux input with automatic +12 dB gain stage

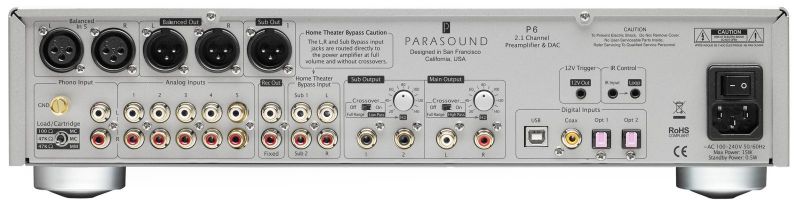

  • 5 pairs RCA line level inputs, 1 pair XLR balanced input
  • Balanced XLR and RCA left and right preamp outputs
  • 1 balanced XLR and 2 RCA subwoofer outputs
  • Bass & treble controls with relay bypass from remote
  • Rear panel IR input and IR loop output jacks
  • 12 Volt trigger output

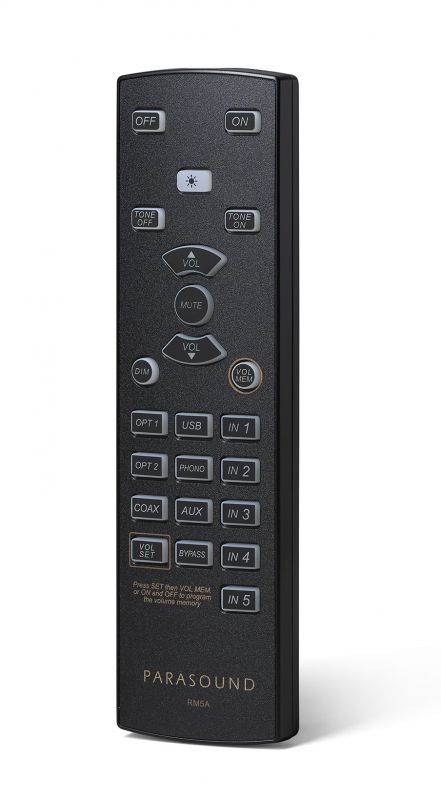

  • Back-lit remote control with discrete buttons
  • Burr Brown analog resistor ladder volume control
  • Dimmable front panel volume display
  • Ball bearing supported solid aluminum volume knob
  • Programable default turn on volume setting
  • Increased phono stage gain for lower output cartridges
  • Improved channel separation and balance tracking
  • Updated cosmetics with subtle gold highlights

Frequency Response
10 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.5 dB

Total Harmonic Distortion (THD)
< 0.01 %

Interchannel Crosstalk
> 70 dB at 20 kHz
> 78 dB at 1 kHz

Preamplifier Stage Input Sensitivity
300 mV in for 1 V
Total Gain: 10 dB
Max Output: 7.5V

S/N Ratio - Line Inputs 1- 5
> 108 dB (shorted, IHF A-weighted)
> 88 dB (shorted, unweighted)

S/N Ratio - DAC Inputs
> 108 dB (IHF A-weighted)
> 88 dB (unweighted) S/N Ratio - Phono Input
MM > 80 dB (shorted, IHF A-weighted)
MM > 70 dB (shorted, unweighted)
MC > 67 dB (shorted, IHF A-weighted)
MC > 55 dB (shorted, unweighted)

Phono Stage Sensitivity / Input Impedance
MM: 38 dB / 47 k Ω
MC: 52 dB / 47 k Ω or 100 Ω

Input Impedance
Unbalanced: 24 k Ω
Balanced: 100 k Ω per leg

Preamplifier Output Impedance
Unbalanced: 100 Ω
Balanced: 470 Ω per leg

High & Low Pass Crossover Slope
12 dB per octave

Supported DAC Sampling Rates
USB: up to 384 kHz / 32-bit PCM
DSD Native: DSD 64, DSD 128, DSD 256
DSD over PCM (DoP) at 384 kHz
Coax/Optical: up to 192 kHz / 24-bit PCM

Digital to Analog Converter
ESS Sabre32 Reference ES9018K2M
384 kHz / 32-bit

USB 2.0 Controller
Savitech SA9227, 384 kHz / 32-bit

Headphone Amplifier
Texas Instruments TPA6120A
Output Impedance 10 ohms

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

Dimensions
Width: 437 mm
Depth: 381 mm
Depth, with cables 432 mm
Height, with feet: 105 mm
Height, without feet: 89 mm, 2U

Net Weight
6.3 kg Shipping Weight
9.5 kg

Power Requirement
Standby: 0.5 watts
Power On: 15 watts
100-250 VAC 50/60 Hz (automatic)
